Performance Grade 70-10
- Packing: New Steel Drum
- MOQ: 500 MT
- Payment Term: TT Method
| Infinity Galaxy PG 70-10 | |
|---|---|
| Essential Details | Description |
| Type | Performance Grade |
| Feed Stock | Iran Crude Oil |
| HS Code | 27132000 |
| Inspection | Included |
| Delivery Term | FOB-CFR-CIF |
| Production and Loading Period | Maximum 3 Weeks |
| Payment Term | TT Method FOB Delivery: 40% advance and balance against customs documents CFR/CIF Delivery: 40% advance and balance against B/L daft |
| Marking | Marking can be customized based on customer request |
| Supply Capacity | 50,000 MT/Month |
| Packing | New Steel Drum |
Performance Grade 70-10 Specification
| Bitumen PG 70-10 Specification | |||
|---|---|---|---|
| Specification | Unit | Value | Method |
| Average 7-Day Maximum Pavement Design Temperature | °C | 70 | – |
| Minimum Pavement Design Temperature | °C | > -10 | – |
| Flash Point Temperature | °C | Min230 | AASHTO T48 |
| Viscosity Maximum 3 Pa.s, Test Temperature | °C | 135 | AASHTO T316 |
| Dynamic Shear G*/sin Minimum 2.2 KPa Test Temperature | °C | 70 | AASHTO T315 |
| Rolling Thin Film Oven Test (T 240) | |||
| Mass Change | % | Max1.00 | AASHTO T240 |
| Dynamic Shear G*/sin Minimum 2.2 KPa Test Temperature, @10 rad/s | °C | 70 | AASHTO T315 |
| Pressure Aging Vessel (PAV) Test (AASHTO R28) | |||
| PAV Aging Temperature | °C | 100 | AASHTO R28 |
| Dynamic Shear G*/sin Maximum 5000 KPa Test Temperature, @10 rad/s | °C | 34 | AASHTO T315 |
| Creep Stuffiness S Maximum 300 Mpa M-Value Minimum 0.300 Test Temp,@60s | °C | 0 | AASHTO T313 |
| Direct Tension Failure Strain Minimum 1 % Test Temp@1mm/min, | °C | 0 | AASHTO T314 |
| Critical Low Cracking Temperature Critical Cracking Determined by PP42 Test Temp | – | 0 | AASHTO PP42 |
Performance Grade 70-10 Packing
| Type | Picture | Description |

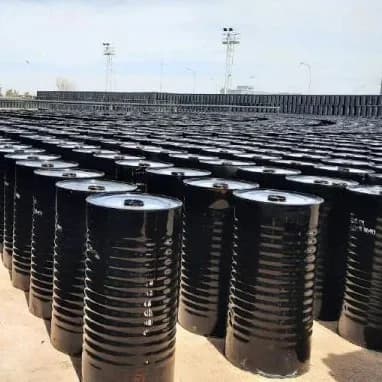

| New Steel Drum |  | Different types of new steel drums are available: Long Drum -180 kg – Height 980 mm Normal Drum -150 kg – Height 860 mm Short Drum – Big Lead – 156 kg – Height 890 mm Normal Drum – 200 kg – Height 950 mm The diameter of all drums are 500 mm and the body thickness is 6 mm. |
Purchase Process
Buy PG 70-10 from Infinity Galaxy
As an experienced bitumen supplier in the Middle East, we are ready to supply the performance grade 70-10 with the most competitive price for our esteemed customers all over the world.
After filling the below form, our sales specialist will contact you within 12 hours. It is a big pleasure for us to be at your service and guide you for the best time of the market to finalize your order based on the market analysis and reports.
